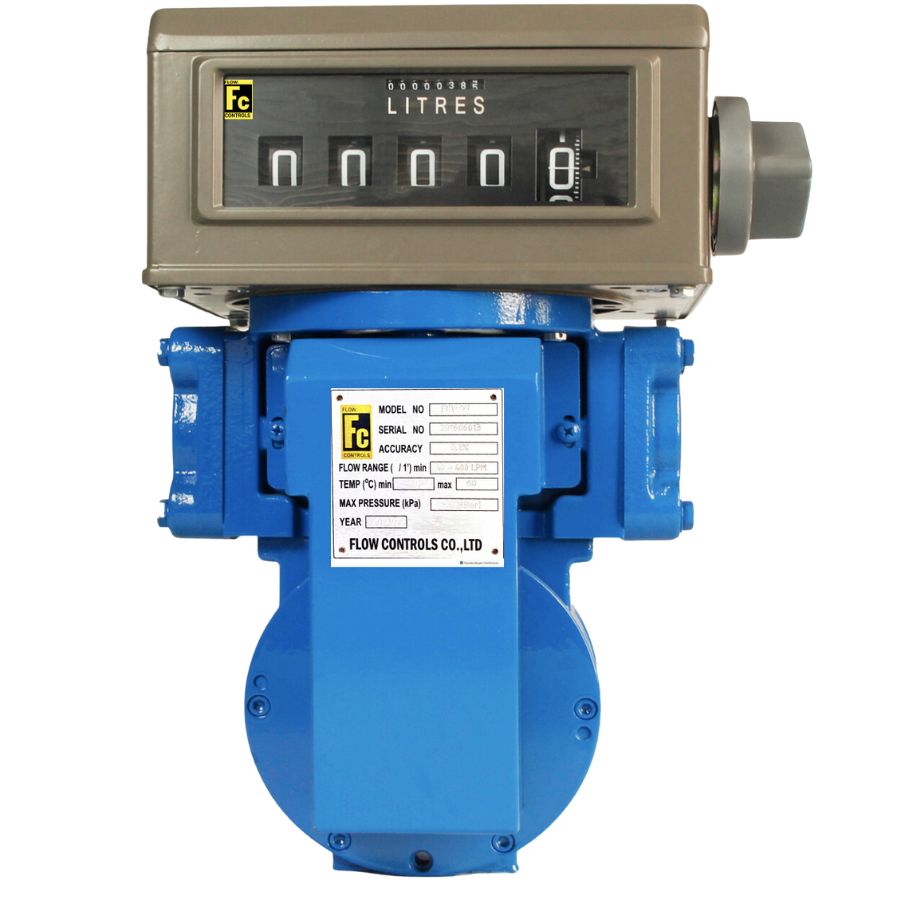

Flow Controls Positive Displacement Flow Meter FCV-Series meters are the most accurate and reliable meters for the purpose of custody transfer of fuels (refined and alternative). With the advantage of simple design language and durable construction, together with consistently time-proven record accuracy, is why clients choose Flow Controls for the purpose of fluid custody transfer.
Simple construction of rotor blades for easy and low maintenance cost, wearing compensation to maintain
Wide Viscosity – Meters can accurately calculate liquid products up to 800 Cst
Equipped with easily modifiable NPT Connection, FCV Series provides unrivalled adaptability to suit your needs
Meters conformed to PEI and CE accuracy requirements
Products can be calculated correctly from -40 °C Up to 60 °C
High Pressure Rating – Up to 8 Bar Max Pressure Rating
Repeatability: Achieves 0.02% or better accuracy across the entire flow range.
FCV-50® Meters are designed for accurately measuring refined petroleum products, including leaded and unleaded gasoline, fuel oils, diesel fuel, kerosene, and ethylene glycol (antifreeze), all at their rated capacity.

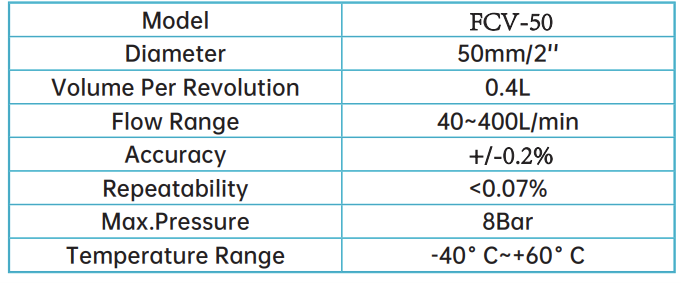

FCV-50 Series Spec
FCV-80® Meters are designed for accurately measuring refined petroleum products, including leaded and unleaded gasoline, fuel oils, diesel fuel, kerosene, and ethylene glycol (antifreeze), all at their rated capacity.
FCV-80 Series Spec

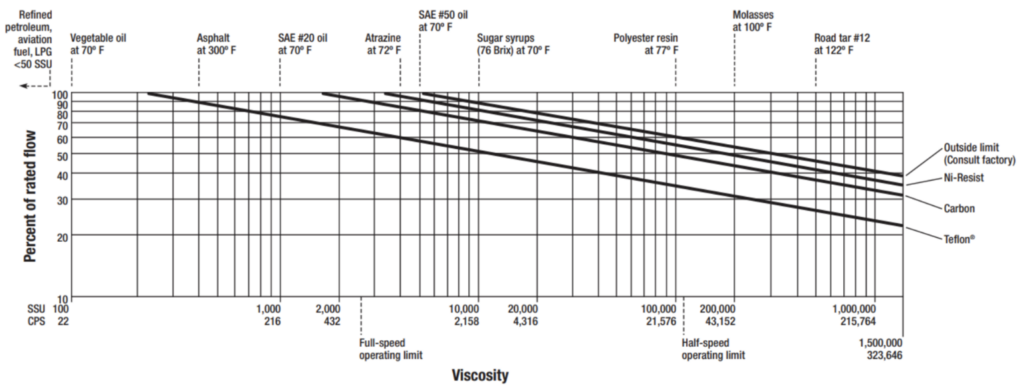

Use the chart below to determine the maximum meter flow rate based on meter bearing material and product viscosity:
If the point is above the slope, the pressure loss exceeds allowable limits. Consider using a larger meter, reducing the flow rate, or selecting different bearing materials.
