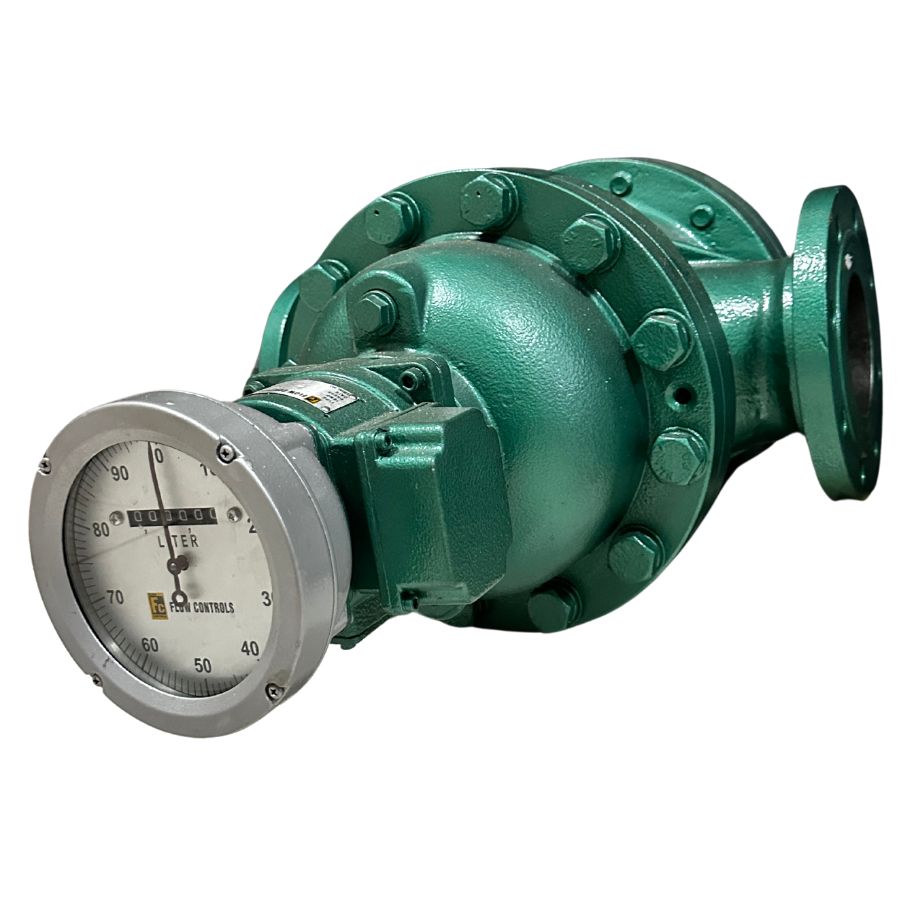

FCO Oval gear flowmeters are devices used to measure and control liquid flow in pipes. They offer a wide flow range, low pressure loss, and high accuracy, making them suitable for various liquids, including high-temperature and high-viscosity fluids. These meters come with mechanical displays for real-time and totalized flow readings.
They can be constructed from different materials depending on the liquid type and are commonly used in industries such as petroleum, chemicals, food, and medicine.
No metal to metal connection which means that the measuring chamber suffers little to none deterioration
Meters can accurately calculate liquid products Up to 2000mPa.s
Equipped with Flanged Connection (PN16 Connection)
Meters conformed to CE accuracy requirements
Products can be calculated correctly from -40 °C Up to 60 °C
High Pressure Rating – Up to 10.5 Bar Max Pressure Rating
Repeatability: Achieves 0.02% or better accuracy across the entire flow range.

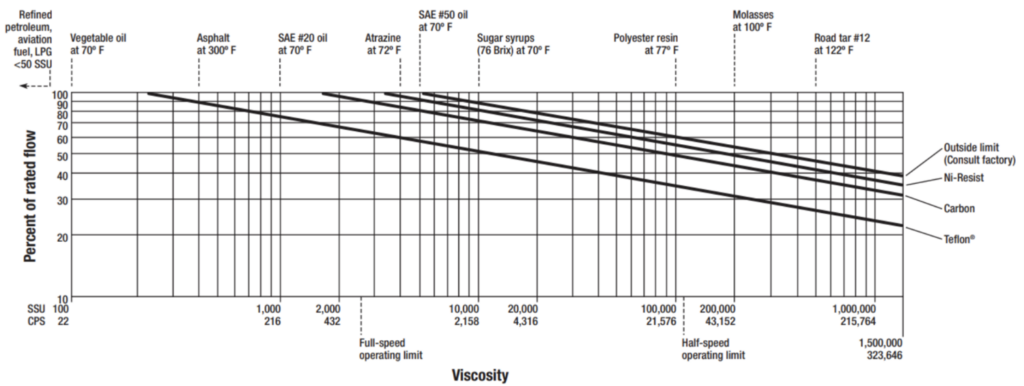

Use the chart below to determine the maximum meter flow rate based on meter bearing material and product viscosity:
If the point is above the slope, the pressure loss exceeds allowable limits. Consider using a larger meter, reducing the flow rate, or selecting different bearing materials.
