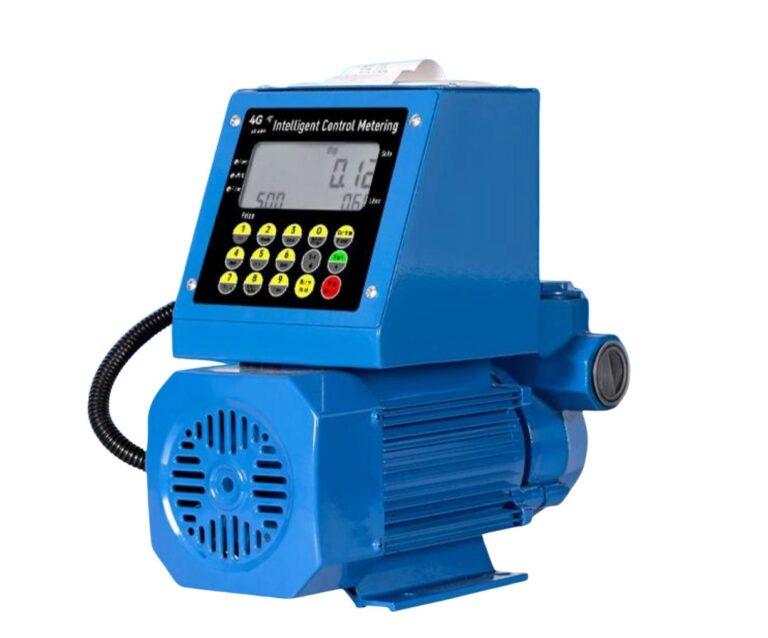

Flow Controls Positive Displacement Flow Meter FC-ACM Series meter are the most reliable and compact all-in-one meter for the purpose of custody transfer of fuels (refined and alternative). With the advantage of simple design language and durable construction, connected with a built on pump and valve, is why clients choose Flow Controls for the purpose of simple fluid custody transfer
No metal to metal connection which means that the measuring chamber suffers little to none deterioration, with 0.5% Accuracy
The Digital Display Holds Up to 500 Detailed Transactions, and you can easily manage the data via app / website
Equipped with built in explosion proof pump and solenoid valve, FC-ACM Series provides unrivalled adaptability to suit your needs

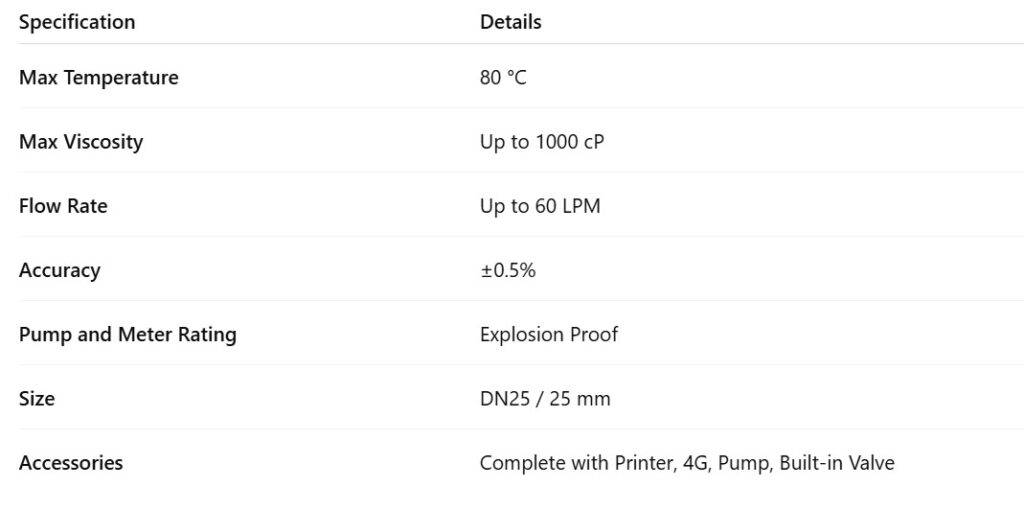

Meters conformed to CE accuracy requirements
Products can be calculated correctly from Up to 80 °C
High Pressure Rating – Up to 10 Bar Max Pressure Rating
Accuracy Standard Of +/- 0.5% Range
Use the chart below to determine the maximum meter flow rate based on meter bearing material and product viscosity:
If the point is above the slope, the pressure loss exceeds allowable limits. Consider using a larger meter, reducing the flow rate, or selecting different bearing materials.
Every industry has unique needs, and we understand that one-size-fits-all solutions simply won’t do.
